WIB3 - Sea weather - NAVTEX - Barograph

For the PC (USB)

• Receives sea-weather forecasts of the DWD on 147.3 kHz

• Receives NAVTEX on 518 kHz (international, English)

• Receives NAVTEX on 490 kHz (national, national language)

• Reception range approx. 300 nautical miles around Hamburg (DWD)

• Automatical message administration

• Precision-air-pressure-sensor with 0,1hPa resolution

• Diagram of the air pressure process (max. 7 days)

• Indication of air pressure tendency (3 hour)

• Optical and acoustical storm-warning

• Temperature indication

• Internal ferrite rod antenna, no antenna installation necessary

• Internal batteries for approx. 7 days cont. receipt without PC

• Batteries will be loaded via PC

• Non volatile data memory for more than 1000000 characters

• A charger for 12/24V or 230V is optionally available


Sea weather forecast from the DWD

The German weather service sends sea-weather forecasts for the next 24 hours, 2-day-forecasts and 5-day-forcasts in German language on the long wave frequency 147.3 kHz. In addition to the plain text sea-weather forecasts the DWD also sends encoded weather messages, the so-called Synop/Ship messages. Some PC programs are able to decode these and represent the data on a electronical sea chart.

Barograph

With the help of the internal precision-air-pressure-sensor the air pressure will be stored during a period of max. seven days. The air pressure process can be indicated on the PC in form of a gradient. The weather info box supervises the air pressure process and activates an optical and acoustic alarm, if the air pressure changes fast (storm danger), also without PC.

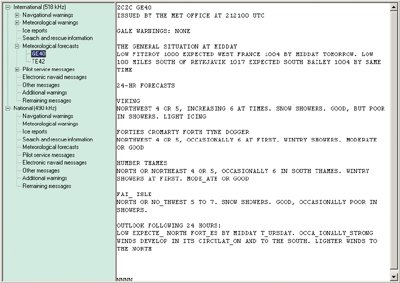

NAVTEX from the costal radio stations

The equipment is able to receive world-wide the NAVTEX messages of the costal radio stations on the frequencies 490 kHz and 518 kHz. The messages on 518 kHz are sent in English language and on 490kHz they are sent in the respective national language. The range of the NAVTEX- transmitters varies in dependence of the transmitting power.

NAVTEX messages include e.g.:

• Nautical warnings
• Distress messages
• Weather forecasts
• storm warnings

The handling of the weather info box will be carried out via a comfortable bilingual Windows software (German/English).

You can download the software for test purposes under www.wetterinfobox.com/Downloads.htm.

The WIB3 is suitable for:

• Windows ME
• Windows 2000
• Windows XP

ACCESSORIES:

12/24 V load adapter. For continuous operation on board, independently of the PC.
Item-No. 38153
